Product Overview

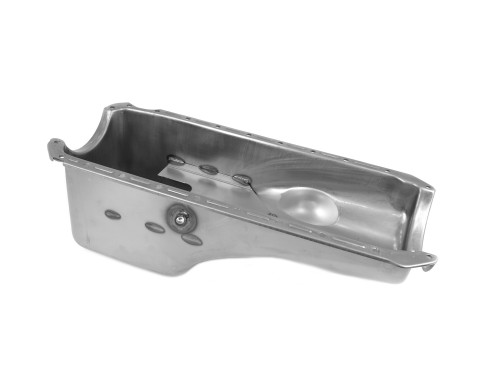

This BBC High Capacity Marine Pan is for Standard Big Blocks with 2 piece rear seals. With a deep 8" full length sump it holds 9 quarts of oil for greater oil capacity. Designed for applications with the pickup at the flywheel end of the engine. This pan requires our 18-301 pickup.
Features & Benefits:
- 9 qt Pan Capacity
- 14 ga. Steel Construction
- Double Trap Door Baffles
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Drain Fittings
- Provision For our Pan Mounted Dipstick
- Powder Coating & Brass Plugs For Corrosion Protection
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753714312
- Baffled: Yes
- Capacity: 9 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 9 qt Pan Capacity
- Feature 2: 14 ga. Steel Construction
- Feature 3: Double Trap Door Baffles
- Feature 4: Removable Windage/Anti-Slosh Baffle
- Feature 5: 1/2" NPT Drain Fittings
- Feature 6: Provision For our Pan Mounted Dipstick
- Feature 7: Powder Coating & Brass Plugs For Corrosion Protection
- Finish: Black Gloss Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 14 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 18-301 - Our Stock Replacement Pickup
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 88-300 - BBC Mark IV Oil Pan Gasket
- Stoke: 4.5 inches
- Sump Depth: 8 inches
- Windage Tray Included: No
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
