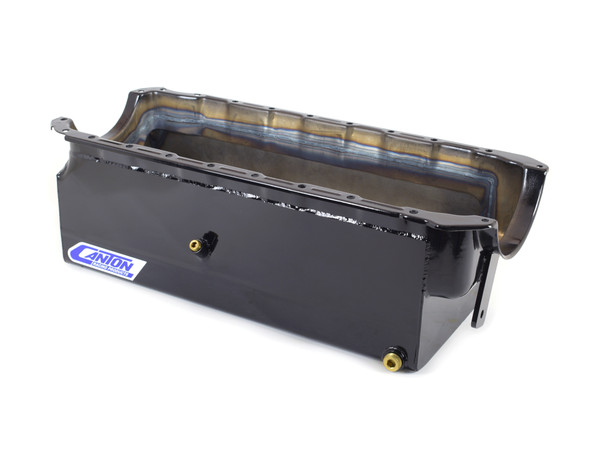

Canton 18-310 Oil Pan For Big Block Chevy Mark 4 Marine Reverse Mount Oil Pan - 18-310

This reverse mount marine pan is for MK IV Big Block Chevys. Pan is 8? deep and holds 9 quarts of oil. It is designed with a front of engine pickup compartment with double trap doors for oil control in reverse mount engine applications. This pan requires our 18-311 pickup.

Features & Benefits:

• 9 qt Pan Capacity
• 14 ga. Steel Construction
• Front of engine pickup compartment for reverse mount applications
• Double Trap Door Baffles
• Removable Windage/Anti-Slosh Baffle
• 1/2" NPT Drain Fittings
• Provision For our Pan Mounted Dipstick
• Powder Coating & Brass Plugs For Corrosion Protection

Associated Comments:

• N/A

Additional Attributes:

• GTIN: 00887753714343
• Baffled: Yes
• Capacity: 9 Quart System Capacity
• Crank Scraper Included: No
• Dipstick Port: Yes
• Drain Plug Included: Yes
• Feature 1: 9 qt Pan Capacity
• Feature 2: 14 ga. Steel Construction
• Feature 3: Front of engine pickup compartment for reverse mount applications
• Feature 4: Double Trap Door Baffles
• Feature 5: Removable Windage/Anti-Slosh Baffle
• Feature 6: 1/2" NPT Drain Fittings
• Feature 7: Provision For our Pan Mounted Dipstick
• Feature 8: Powder Coating & Brass Plugs For Corrosion Protection
• Finish: Black Gloss Powdercoat
• Gasket or Seal Included: No
• Hardware Included: No
• Kicked Out: Yes
• Material: 14 Gauge Steel
• Pickup Included: No
• Recommended Accessory 1: 18-311 - Pickup for 18-310/18-312 Reverse Mount Marine Pan
• Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
• Stoke: 4.5 inches
• Windage Tray Included: No

Extended Information:

• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26.5 x 13.25 x 10.25 inches
