Product Overview

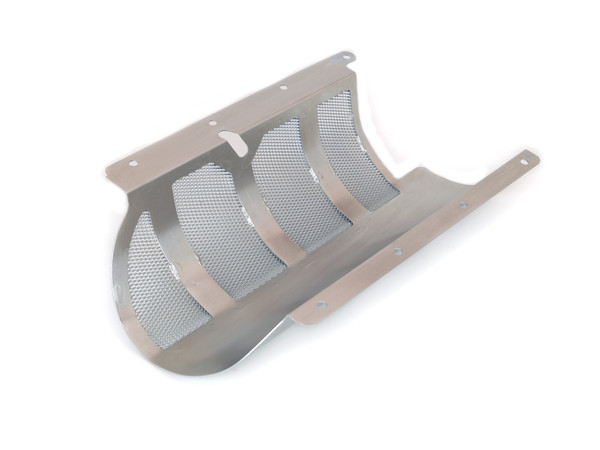

The Pontiac Screen Windage Tray sandwiches between the block and the pan. Made to be used with the 301-455 blocks and aftermarket pans that are deeper in the front than OEM. The half-screen, half-solid design offers excellent oil oil control and horsepower savings. This full-length tray wraps around the oil pump and provides windage control for the entire rotating assembly. NOTE: On engines that use a two piece dipstick tube, the tube will require modification to be used with our tray. The main cap bracket on the lower tube will need to be removed and the lower tube fitted and attached to the tray. For ease of installation, use our #22-310 Oil Pan Stud Kit.
Features & Benefits:
- For ease of installation, use our #22-310 Oil Pan Stud Kit
- Made In USA
- Keeps oil in the sump from getting into the rotating assembly when the vehicle is in motion
- Reduced wind age around the crank and turbulence in the sump means horsepower savings and improved oil control for your engine
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753715180
- Feature 1: For ease of installation, use our #22-310 Oil Pan Stud Kit
- Feature 2: Made In USA
- Feature 3: Keeps oil in the sump from getting into the rotating assembly when the vehicle is in motion
- Feature 4: Reduced wind age around the crank and turbulence in the sump means horsepower savings and improved oil control for your engine
- Recommended Accessory 1: 22-310 - Oil Pan Stud Kit
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 19.25 x 12.5 x 4.25 inches
