Product Overview

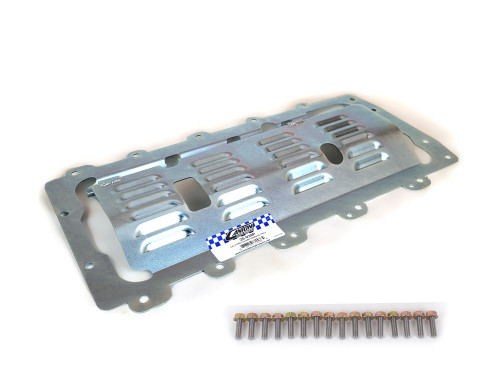

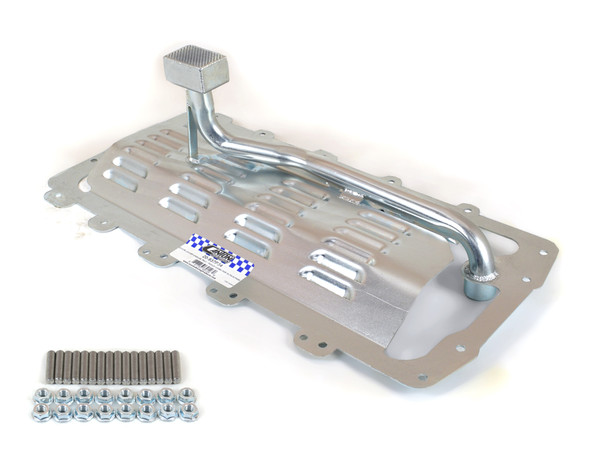

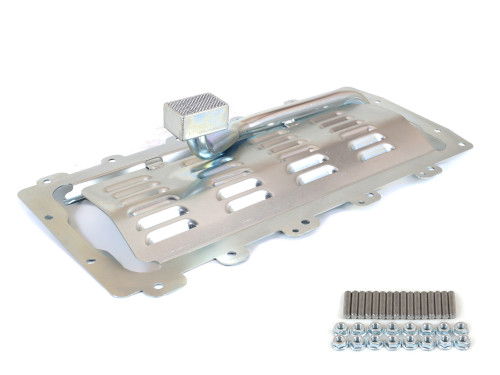

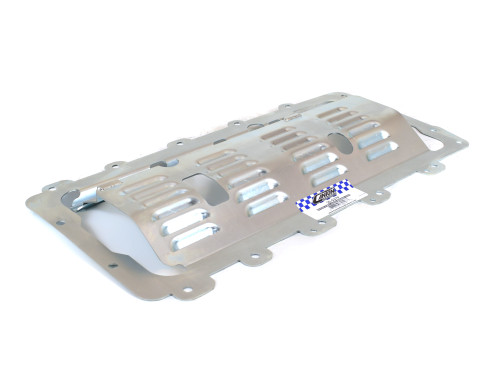

The 20-937P34 Coyote Gen 3 Louver Tray / Pickup Combo is designed to replace and improve upon Ford part# BR32-6710 when using Canton pan #15-730 or #15-734. The louvered designed tray reduces drag from windage and oil slosh coming off the rotating assembly. This part is tig welded for strength, durability and longevity specifically in high performance applications. The windage tray/pickup combo is required for use with our Gen 3 oil pans 15-730 and 15-734. This part is zinc plated to protect against corrosion.
Features & Benefits:
- Improvement over composite stock windage tray #BR32-6710
- Required to use with part #15-730 and #15-737
- Direct fit with OEM Gen 3 Coyote Oil Pump
- Reduces drag from windage and oil slosh freeing up HP
- TIG welded for strength, durability, and longevity
- Zinc Plated for corrosion resistance
- Included Hardware: 6mm-1 x 35mm studs x 16, 6mm-1 flange nuts x 16
Associated Comments:
- Gen 3 Coyote Engine
Additional Attributes:
- GTIN: 00887753891280
- Finish: Silver Plated
- Included Hardware: 6mm-1 x 35mm studs x 16, 6mm-1 flange nuts x 16
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Released
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23 x 12 x 10 inches
