Product Overview

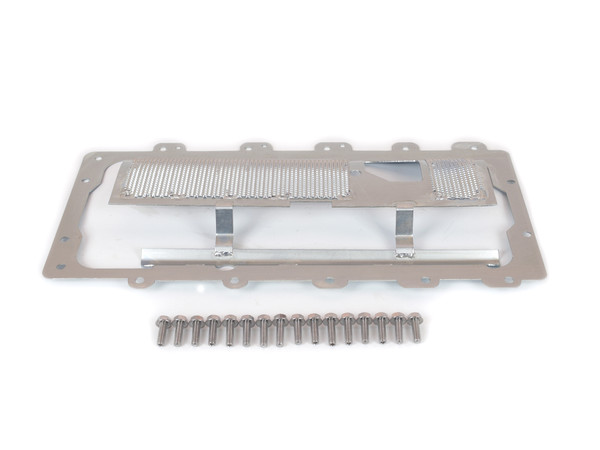

4.6/5.4 Ford Screen Windage tray for stock or aftermarket oil pans. Mounts between the oil pan and block, includes oil pan studs and nuts. When using with stock 4 valve mustang pickup, scraper on pickup must be removed for clearance. Note: Sealer between tray and block recommended with gasket between tray and oil pan.
Features & Benefits:
- Note: When using with stock 4 valve mustang pickup, scraper on pickup must be removed for clearance
- Made In USA
- Keeps oil in the sump from getting into the rotating assembly when the vehicle is in motion
- Reduced wind age around the crank and turbulence in the sump means horsepower savings and improved oil control for your engine
- Sealer between tray and block recommended with gasket between tray and oil pan.
- Included Hardware: 8mm -1.25 x 35mm studs x 16, 8mm -1.25 flange nuts x 16
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753715357
- Mounting Hardware Included: Yes
- Feature 1: Note: When using with stock 4 valve mustang pickup, scraper on pickup must be removed for clearance
- Feature 2: Made In USA
- Feature 3: Keeps oil in the sump from getting into the rotating assembly when the vehicle is in motion
- Feature 4: Reduced wind age around the crank and turbulence in the sump means horsepower savings and improved oil control for your engine
- Included Hardware: 8mm -1.25 x 35mm studs x 16, 8mm -1.25 flange nuts x 16
- Recommended Accessory 1: 88-780 Oil pan gasket for 4.6and 5.4 Ford
Extended Information:
- Emissions : 1
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 21.25 x 11.25 x 1.5 inches
20-939-20-939P
