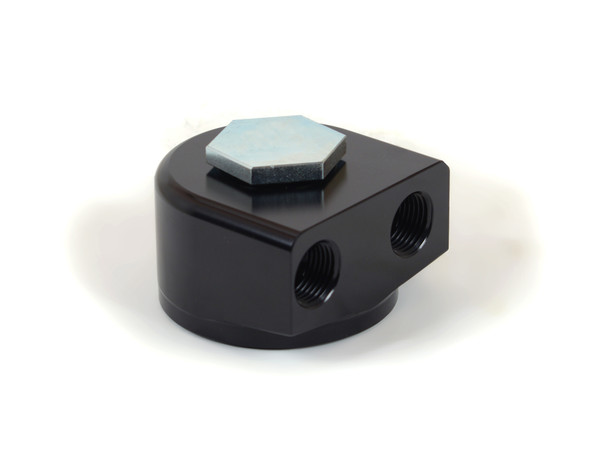

Canton 22-593 Billet Aluminum Remote Oil Filter Adapter LS1 90 Degree Rotating - 22-593

This 90 deg. rotating remote oil filter adapter spins-on to 13/16"-16 thread with 2-5/8" seal stock filter locations (Chevy LS1 small blocks) and provides 1/2" N.P.T. in and out ports for plumbing a remote filter. It's unique design permits the two 90 degree inlet and outlet ports to be rotated. This simplifies hose and fitting connections for all applications. It is machined from billet aluminum and comes with all necessary hardware and O-Ring seals.

Features & Benefits:

• 1/2" NPT Inlet Port
• 1/2" NPT Outlet Port
• Machined Billet Aluminum
• Hardware Included
• 13/16" -16 Thread Pitch
• 2 5/8" Seal

Associated Comments:

• N/A

Additional Attributes:

• GTIN: 00887753715951
• Feature 1: 1/2" NPT Inlet Port
• Feature 2: 1/2" NPT Outlet Port
• Feature 3: Machined Billet Aluminum
• Feature 4: Hardware Included
• Feature 5: 13/16" -16 Thread Pitch
• Feature 6: 2 5/8" Seal
• Recommended Accessory 1: 98-004 - Replacement O-Ring Kit
• Recommended Accessory 2: 23-245 - 1/2" NPT to -10 AN Steel Fitting
• Recommended Accessory 3: 23-246 - 1/2" NPT to -12 AN Steel Fitting
• Recommended Accessory 4: 23-243A - 1/2" NPT to -6 AN Aluminum Fitting
• Recommended Accessory 5: 23-244A - 1/2" NPT to -8 AN Aluminum Fitting
• Recommended Accessory 6: 23-245A - 1/2" NPT to -10 AN Aluminum Fitting
• Recommended Accessory 7: 23-246A - 1/2" NPT to -12 AN Aluminum Fitting
• Recommended Accessory 8: 23-345A - 90 degree 1/2" NPT to -10 AN

Extended Information:

• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 8.25 x 7.5 x 2 inches
