Product Overview

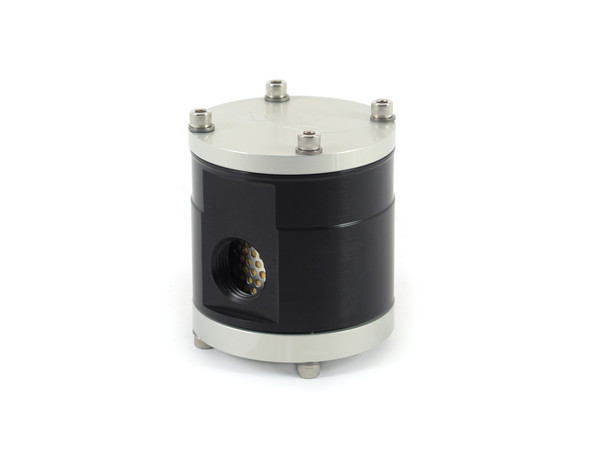

This 4" tall canister style filter is machined from billet aluminum. This is a non bypass filter to ensure that no dirty oil bypasses the filter. This filter has two 1-1/16 -12an fittings, one in the side of the housing and one on the bottom cap. The easy to remove cap has four allen head bolts and allows for easy element replacement and inspection. This filter comes with an 8 micron synthetic fiber element but can use any of our 2 5/8" elements.
Features & Benefits:
- 3.5 in Diameter Machined Body
- 4 in Tall Body
- Designed For Maximum Capacity and Flow
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753717009
- Feature 1: 3.5 in Diameter Machined Body
- Feature 2: 4 in Tall Body
- Feature 3: Designed For Maximum Capacity and Flow
- Feature 4: 8 Micron Sythetic Element pre-installed For High Flow Fine Filtration
- Feature 5: Easy to Remove Caps for Replaceable Elements
- Feature 6: O-Ring Sealed Caps
- Feature 7: Channel Machining for Easy Clamp Mounting
- Feature 8: (-12) Port Inlet and Outlet
- Finish: Blue ANodize
- Material: Billet Aluminum
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Superseded
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 5.75 x 4.25 x 4.5 inches
