Product Overview

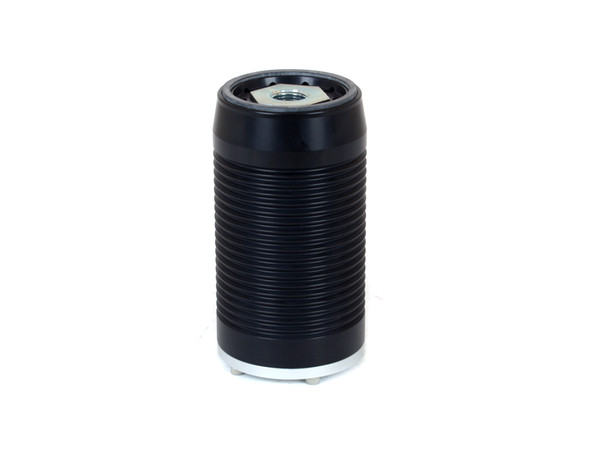

This 6.25" tall billet spin-on filter has 3/4"-16 threads and a standard size o-ring. Like all CM filters it features a billet aluminum body built for strength and durability for a lifetime of use. Heat sink ribs add to filter's functionality and aggressive aesthetic. The filters bottom cap is easily removed with four bolts for filter element inspection and replacement. A CM 4-5/8" tall synthetic fiber filter element which flows 45 GPM of hot engine oil with no loss of pressure and filters down to 8 microns comes preinstalled.
Features & Benefits:
- 6.25" tall billet spin-on filter has 3/4-16 threads and a standard size O-ring
- 4-5/8" tall synthetic fiber filter element flows 45 GPM of engine oil with no loss of pressure
- Features a billet aluminum body for strength and durability
- Heat sink ribs add to filters functionality and aggressive aesthetic
- Bottom cap is easily removed with four bolts for filter element inspection and replacement
- Made in the USA
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753717238
- Feature 1: 6.25 in Body
- Feature 2: Flows 45 GPM of hot engine oil
- Feature 3: 8 Micron Sythetic Element pre-installed For High Flow Fine Filtration
- Feature 4: 3/4 -16 Female Nut
- Feature 5: 2 5/8 in Diameter O-Ring Gasket
- Feature 6: Removable End Cap
- Finish: Blue ANodize
- Material: Billet Aluminum
- Recommended Accessory 1: 26-100 - 4-5/8 Tall 8 Micron Oil Element - Single
- Recommended Accessory 2: 26-120 - 4-5/8 Tall 8 Micron Oil Element - 6-Pack
- Recommended Accessory 3: 26-040 - 4-5/8 Tall 8 Micron Oil Element - 24-Pack
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Superseded
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 8.75 x 4.25 x 4.5 inches
