Product Overview

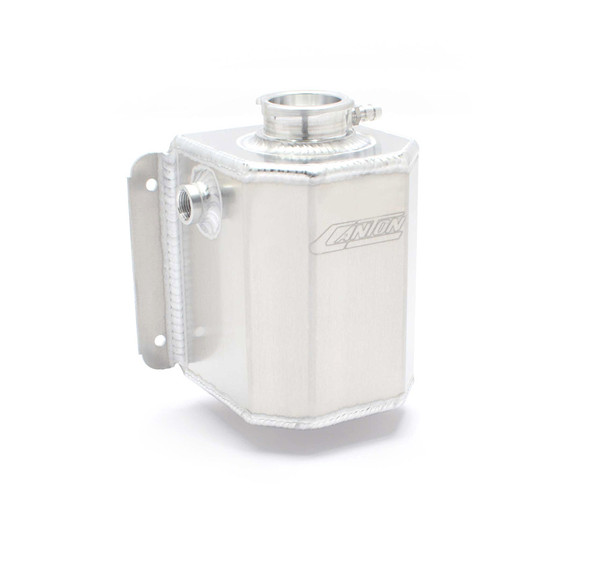

This Coolant Expansion Fill Tank is 1.75 Quart. Size: 6" Tall, 4-1/2" Wide, 4-1/2" Deep. Side Port: 3/8" N.P.T. Bottom Port: 1/2" N.P.T. This Canton expansion tank is built with .100" thick aluminum and has a billet aluminum neck with a barbed overflow fitting and accepts standard radiator caps.
Features & Benefits:
- .100" Aluminum Fabrication
- TIG Welded
- Billet Aluminum Machined Radiator Neck
- Built in Mounting Bracket
- Chamfered Style Gives Improved Aesthetic
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753718334
- Capacity: 1.75" Quart Capacity
- Feature 1: .100 Aluminum Fabrication
- Feature 2: TIG Welded
- Feature 3: Billet Aluminum Machined Radiator Neck
- Feature 4: Built in Mounting Bracket
- Feature 5: Chamfered Style Gives Improved Aesthetic
- Finish: Raw Aluminum
- Material: .100 Gauge Aluminum
- Recommended Accessory 1: 81-016 - 16 L.B.S. Expansion Tank Pressure Cap
- Recommended Accessory 2: 81-030 - 30 L.B.S. Expansion Tank Pressure Cap
- Recommended Accessory 3: 81-116 - 16 lbs Billet Expansion Tank Pressure Cap
- Recommended Accessory 4: 81-216 - 16 lbs Billet Expansion Scalloped Tank Pressure Cap
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 4.25 x 4.25 x 3.25 inches
