Product Overview

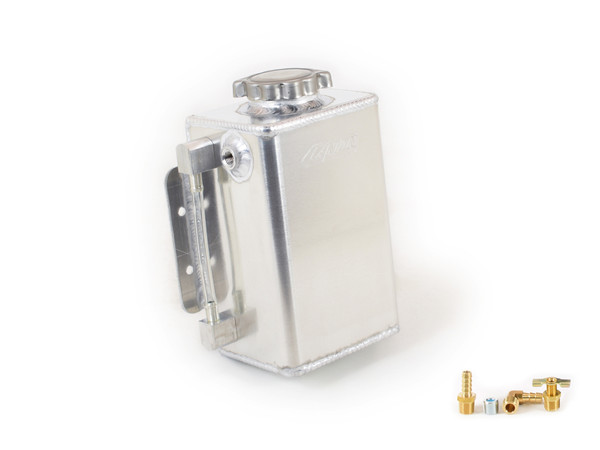

Size: 8" Tall, 5" Wide, 4" Deep. Tank: 2 qt. tank. Side Port: 1/4" N.P.T. Bottom Port: 1/4" N.P.T. Comes with clear tube sight gauge, integrated mounting flanges, and in addition to the petcock & vented cap, two 5/16" barbed fittings 1X 90 deg. & 1X straight.
Features & Benefits:
- .100 Aluminum Fabrication
- TIG Welded
- Sight Gauge
- Mounting Bracket
- Includes Fittings to be Plumbed as Catch Tank or Recovery Tank
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753718358
- Capacity: 2 Quart Capacity
- Feature 1: .100 Aluminum Fabrication
- Feature 2: TIG Welded
- Feature 3: Sight Gauge
- Feature 4: Mounting Bracket
- Feature 5: Includes Fittings to be Plumbed as Catch Tank or Recovery Tank
- Finish: Raw Aluminum
- Material: .100 Gauge Aluminum
- Recommended Accessory 1: 77-251 - Non-Vented Replacement Cap
- Recommended Accessory 2: 81-200 - Vented Scalloped Replacement Cap
Extended Information:
- Emissions : 1
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 11 x 8.25 inches
