Product Overview

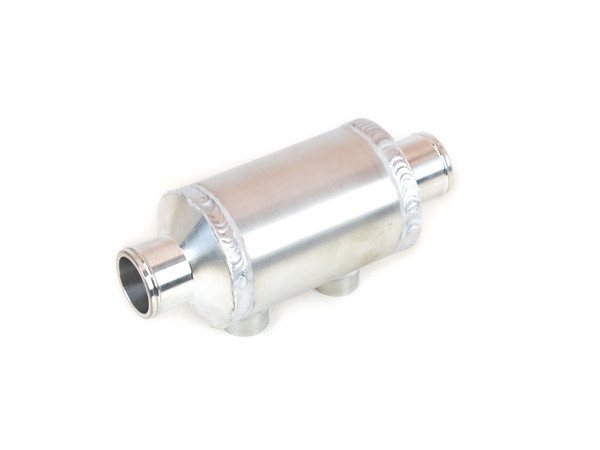

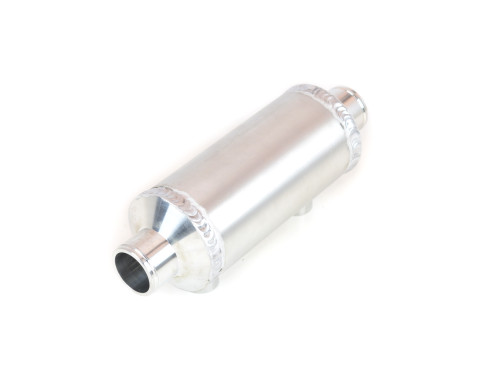

This liquid to liquid heat exchanger can be plumbed inline on a radiator return line and plumbed into the oiling system through the 1/2" NPT fittings. This heat exchanger is designed to help stabilize and lower engine temperatures in cars that have limited space.
Features & Benefits:
- 4" Long body
- Double leak tested
- Designed to be installed inline on the cool side radiator return hose
- 1 1/2" hose connection
- 1/2" NPT oil ports
- 14 internal passage tubes
- Easy to clean tubular design
- Billet aluminum end caps
- Tig welded
- Internally baffled
Associated Comments:
- N/A
Additional Attributes:
- GTIN: 00887753719232
- Feature 1: 4" Long 3" Diameter
- Feature 10: Double leak tested
- Feature 2: Billet CNC'd End Caps
- Feature 3: 14 Tubes for Optimum Heat Transfer
- Feature 4: 1.5" Hose Connections
- Feature 5: 1.4" internal passage tubes
- Feature 6: Easy to clean tubular design
- Feature 7: Billet aluminum end caps
- Feature 8: Tig welded
- Feature 9: Internally baffled
- Finish: Raw Aluminum
- Material: 6061 Aluminum
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 11 x 9.5 x 5 inches
