Product Overview

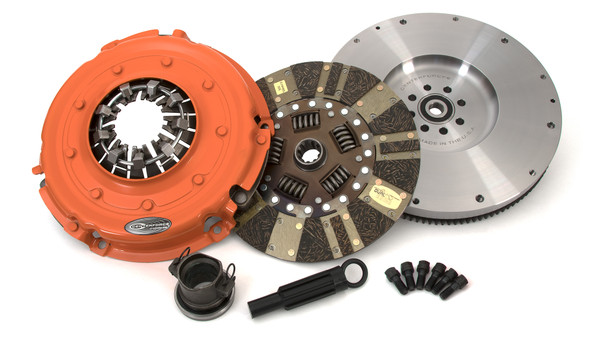

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Features & Benefits:
- 10.750" Diameter
- 273.1mm Diameter
- 1-1/8" x 10 Spline Input Shaft
- Holds Up To 530 ft/lbs of Torque
- Sprung Hub Disc with Organic/Carbon Composite Material
- 127 Tooth R.Gear, 8 Bolt Crank, and 0 oz Counter Balance
Additional Attributes:
- GTIN: 00788442028690
- Alignment Tool Included9: Yes
- Clutch Bolt Pattern6: 2
- Clutch Disc Diameter8: 10.750
- Clutch Disc Diameter9: 273.1
- Counterweight Assist2: YES
- Crankshaft Bolt Hole Quantity7: 8
- Disc Material4: Organic/Carbon composite
- Disc Type Sprung Solid: Sprung
- Disc Type5: Full face/Segmented face
- Flywheel Counter Balance Weight7: 0
- Flywheel Crank Flange Register8: 1.722
- Input Shaft Diameter1: 1-1/8
- Input Spline Quantity3: 10
- Made In The USA9: Assembled
- Material2: Billet Steel Flywheel / Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
- Mounting Hardware Included0: Yes
- Pilot Bushing Included7: Yes
- Release Bearing Included5: Yes
- Ring Gear O.D.7: 12.875
- Tooth Quantity: 127
- Torque Capacity: 530
Extended Information:
- Emissions : 1
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 18 x 18 x 5.5 inches
