Product Overview

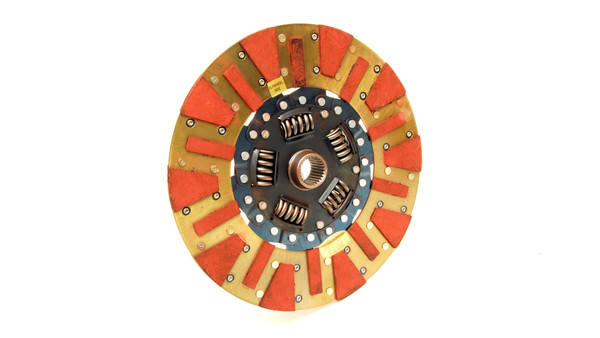

The Centerforce(R) Dual Friction(R) Disc Series uses a single disc with patented dual friction technology by distributing pressure plate clamp force evenly over a 360-degree friction-facing on one side of the clutch disc, while the opposing side uses a segmented friction-facing to concentrate clamping pressure and increase clutch holding-capacity. These discs are made for Centerforce Dual Friction pressure plates.
Features & Benefits:
- 12" Diameter
- 304.8mm Diameter
- 1-1/8" x 26 Spline Input Shaft
- Weighs 5.27 lbs
- Sprung Hub Disc with Organic/Carbon Composite Material
- Dual Friction Design
- High Quality Friction Material
- Increased Holding Capacity
Additional Attributes:
- GTIN: 00788442027594
- Clutch Disc Diameter: 12
- Clutch Disc Diameter: 304.8
- Disc Material1: Organic/Carbon composite
- Disc Type Sprung Solid2: Sprung
- Disc Type4: Full face/Segmented face
- Input Shaft Diameter0: 1-1/8
- Input Spline Quantity1: 26
- Inside Diameter of Friction Surface0: 6.750
- Made In The USA9: Assembled
- Material3: Full Face and Segmented Organic Friction
- Out of Package Weight: 5.27
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 2 inches
