Product Overview

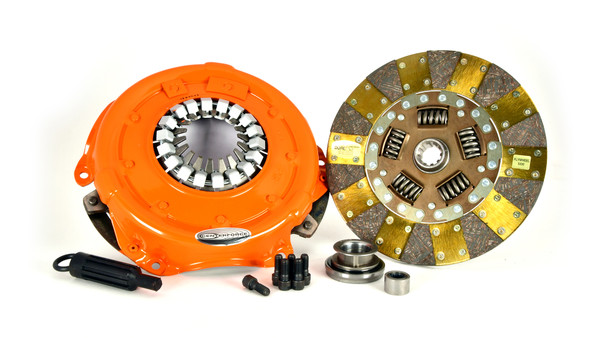

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Features & Benefits:
- 10.4" Diameter
- 264.2mm Diameter
- 1-1/8" x 10 Spline Input Shaft
- Holds Up To 590 ft/lbs of Torque
- Weighs 21.6 lbs
- Sprung Hub Disc with Full face/Segmented face Material
- Centrifugally Assisted
- Dual Friction(R) Design
Additional Attributes:
- GTIN: 00788442035674
- Alignment Tool Included9: Yes
- Clutch Bolt Pattern4: 2
- Clutch Bolt Size8: 3/8 - 16 X 0.900
- Clutch Bolt Type7: Shouldered
- Clutch Disc Diameter: 10.4
- Clutch Disc Diameter: 264.2
- Counterweight Assist7: YES
- Disc Material3: Full face/Segmented face
- Disc Type Sprung Solid4: Sprung
- Flywheel Step Type3: Flat
- Input Shaft Diameter1: 1-1/8
- Input Spline Quantity2: 10
- Made In The USA9: Assembled
- Material5: Nodular Iron Pressure Plate / Full Face and Segmented Organic Friction
- Mounting Hardware Included0: Yes
- Out of Package Weight: 21.6
- Pilot Bushing Included7: Yes
- Release Bearing Included5: Yes
- Torque Capacity: 590
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 18 x 18 x 5.5 inches
