Product Overview

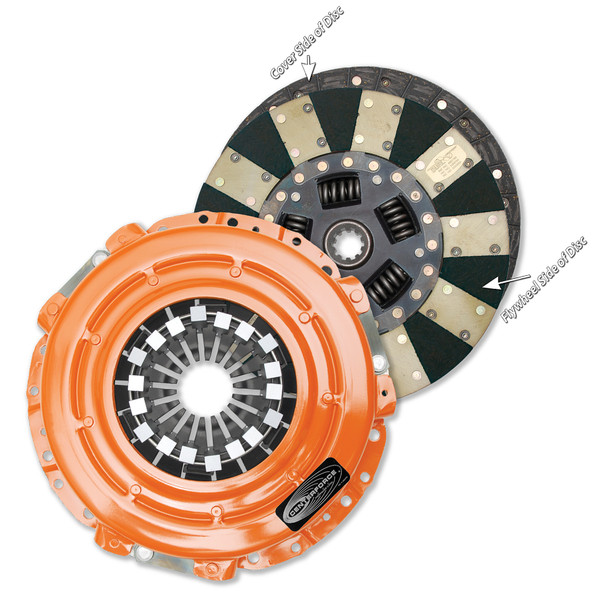

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Features & Benefits:
- 9.125" Diameter
- 236mm Diameter
- 1" x 14 Spline Input Shaft
- Holds Up To 433 ft/lbs of Torque
- Sprung Hub Disc with Organic/Carbon Composite Material
- Dual Friction(R) Design
- Ball Bearing Pressure Plate (where Applicable)
Additional Attributes:
- GTIN: 00788442020656
- Alignment Tool Included9: Yes
- Clutch Bolt Pattern4: 19
- Clutch Disc Diameter: 9.125
- Clutch Disc Diameter: 236
- Counterweight Assist5: No
- Disc Material3: Organic/Carbon composite
- Disc Type Sprung Solid2: Sprung
- Disc Type6: Full face/Segmented face
- Input Shaft Diameter1: 1
- Input Spline Quantity2: 14
- Made In The USA9: Assembled
- Material4: Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
- Torque Capacity: 433
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 4 inches
