Product Overview

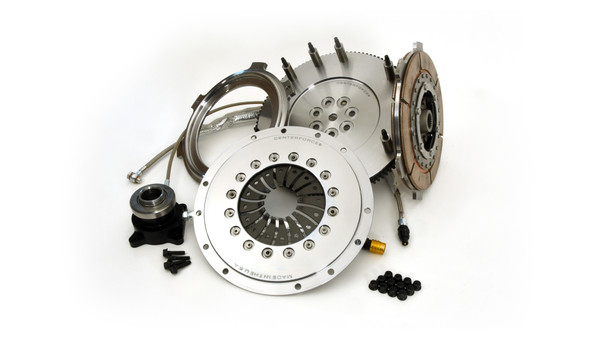

The Centerforce(R) DYAD XDS 8.75" twin disc clutch has been developed for vehicles requiring a holding capacity of 400 to 800 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The disc pack is equipped with metallic friction material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. DYAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
Features & Benefits:
- 8.75" Diameter
- 222.3mm Diameter
- 1" x 23 Spline Input Shaft
- Holds Up To 400-800 ft/lbs of Torque
- Weighs 30.70 lbs
- Solid Hub Disc with Sintered Metallic Material
- 114 Tooth R.Gear, 7 Bolt Crank, and
- Simple Install
Additional Attributes:
- GTIN: 00788442031218
- Clutch Disc Diameter8: 8.75
- Clutch Disc Diameter9: 222.3
- Counterweight Assist2: No
- Crankshaft Bolt Hole Quantity7: 7
- Disc Material4: Sintered Metallic
- Disc Type Sprung Solid: Solid
- Disc Type5: Full face
- Flywheel Crank Bolt Size1: M12 x 1.50 x 15
- Input Shaft Diameter1: 1
- Input Spline Quantity3: 23
- Made In The USA9: Assembled
- Material2: Ceramic
- Mounting Hardware Included0: Yes
- Out of Package Weight: 30.70
- Ring Gear O.D.7: 11.513
- Tooth Quantity: 114
- Torque Capacity: 400-800
Extended Information:
- Emissions : 1
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 18 x 18 x 5.5 inches
