Product Overview

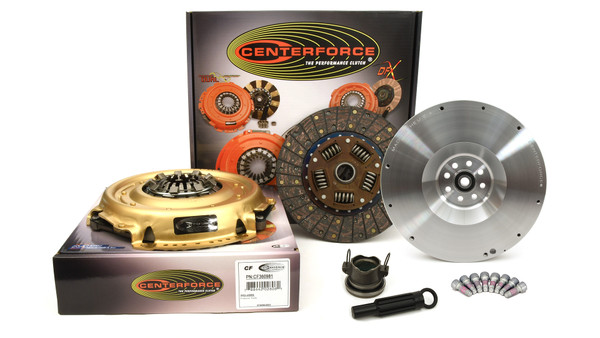

The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
Features & Benefits:
- 10.4" Diameter
- 264.2mm Diameter
- 1-1/8" x 10 Spline Input Shaft
- Holds Up To 379 ft/lbs of Torque
- Weighs 83.70 lbs
- Sprung Hub Disc with Organic Material
- 146 Tooth R.Gear, 8 Bolt Crank, and 0 oz Counter Balance
Additional Attributes:
- GTIN: 00788442030679
- Alignment Tool Included9: Yes
- Clutch Bolt Type7: Shouldered
- Clutch Disc Diameter8: 10.4
- Clutch Disc Diameter9: 264.2
- Counterweight Assist2: YES
- Crankshaft Bolt Hole Quantity7: 8
- Disc Material4: Organic
- Disc Type Sprung Solid: Sprung
- Disc Type5: Full face
- Dowel Pin Quantity Cover To Flywheel1: 3
- Flywheel Counter Balance Weight7: 0
- Flywheel Crank Flange Register8: 1.889
- Input Shaft Diameter1: 1-1/8
- Input Spline Quantity3: 10
- Made In The USA9: Assembled
- Material2: Billet Steel Flywheel / Cast Iron Pressure Plate / Organic Friction
- Mounting Hardware Included0: Yes
- Out of Package Weight: 83.70
- Pilot Bushing Included7: Yes
- Release Bearing Included5: Yes
- Ring Gear O.D.7: 12.345
- Tooth Quantity: 146
- Torque Capacity: 379
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 18 x 18 x 5.5 inches
