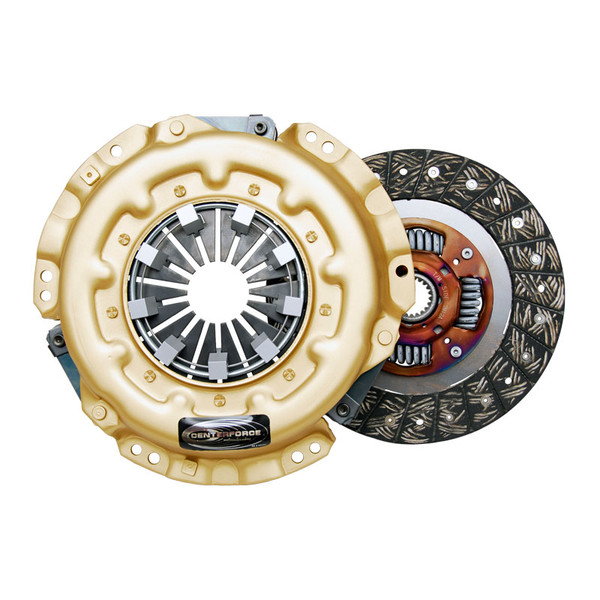

Product Overview
The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
Features & Benefits:
- 9.4375" Diameter
- 225mm Diameter
- 15/16" x 22 Spline Input Shaft
- Holds Up To 237 ft/lbs of Torque
- Sprung Hub Disc with Organic Material
- Centrifugally Assisted
- High Quality Friction Material
- Light Pedal Effort
Additional Attributes:
- GTIN: 00788442013016
- Alignment Tool Included9: Yes
- Clutch Bolt Pattern4: 10
- Clutch Disc Diameter: 9.4375
- Clutch Disc Diameter: 225
- Counterweight Assist5: YES
- Disc Material3: Organic
- Disc Type Sprung Solid2: Sprung
- Disc Type6: Full face
- Flywheel Step4: -0.630
- Input Shaft Diameter1: 15/16
- Input Spline Quantity2: 22
- Made In The USA9: Assembled
- Material4: Cast Iron Pressure Plate / Organic Friction
- Torque Capacity: 237
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 4 inches
