Product Overview

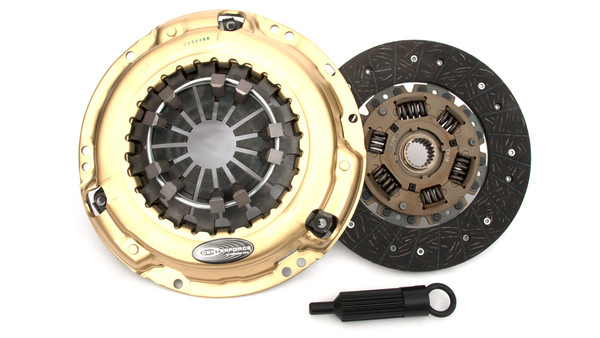

The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
Features & Benefits:
- 9.250" Diameter
- 236mm Diameter
- 1-1/8" x 21 Spline Input Shaft
- Holds Up To 309 ft/lbs of Torque
- Sprung Hub Disc with Organic Material
- Centrifugally Assisted
- High Quality Friction Material
- Light Pedal Effort
- Smooth Engagement
Additional Attributes:
- GTIN: 00788442013559
- Alignment Tool Included9: Yes
- Clutch Bolt Pattern4: 12
- Clutch Disc Diameter: 9.250
- Clutch Disc Diameter: 236
- Counterweight Assist5: YES
- Disc Material3: Organic
- Disc Type Sprung Solid2: Sprung
- Disc Type6: Full face
- Flywheel Step4: 0.018
- Input Shaft Diameter1: 1-1/8
- Input Spline Quantity2: 21
- Made In The USA9: Assembled
- Material4: Cast Iron Pressure Plate / Organic Friction
- Torque Capacity: 309
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 4 inches
