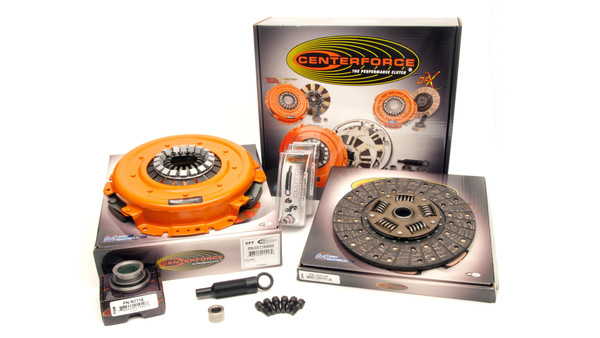

Product Overview
The Centerforce(R) II Clutch Series utilizes a full facing disc with premium friction material and a pressure plate with centrifugal weights (where applicable). Furthermore, static clamp load is increased via our patented machining processes; this combination allows superb holding power and maximum clutch life, making this clutch ideal for selected street/strip, off-road and towing applications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce II Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
Features & Benefits:
- 11" Diameter
- 279.4mm Diameter
- 1-1/8" x 26 Spline Input Shaft
- Holds Up To 572 ft/lbs of Torque
- Sprung Hub Disc with Organic Material
- Centrifugally Assisted
- Ball Bearing Pressure Plate (where Applicable)
- Light Pedal Effort
Additional Attributes:
- GTIN: 00788442028775
- Alignment Tool Included9: Yes
- Clutch Bolt Pattern4: 3
- Clutch Bolt Size8: 3/8 - 16 X 0.900
- Clutch Bolt Type7: Shouldered
- Clutch Disc Diameter: 11
- Clutch Disc Diameter: 279.4
- Counterweight Assist7: YES
- Disc Material3: Organic
- Disc Type Sprung Solid4: Sprung
- Disc Type6: Full face
- Flywheel Step Type3: Flat
- Input Shaft Diameter1: 1-1/8
- Input Spline Quantity2: 26
- Made In The USA9: Assembled
- Material5: Nodular Iron Pressure Plate / Organic Friction
- Mounting Hardware Included0: Yes
- Pilot Bushing Included7: Yes
- Release Bearing Included5: Yes
- Torque Capacity: 572
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 18 x 18 x 5.5 inches
