Product Overview

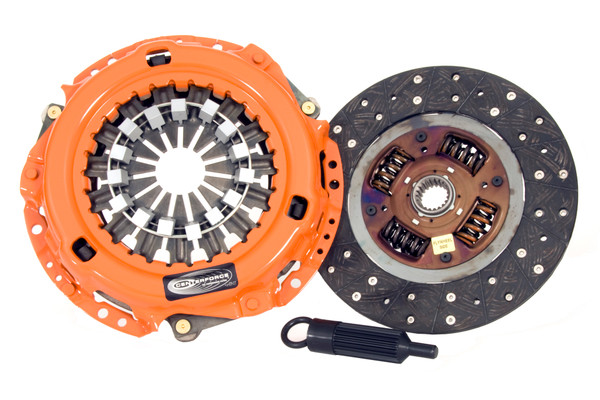

The Centerforce(R) II Clutch Series utilizes a full facing disc with premium friction material and a pressure plate with centrifugal weights (where applicable). Furthermore, static clamp load is increased via our patented machining processes; this combination allows superb holding power and maximum clutch life, making this clutch ideal for selected street/strip, off-road and towing applications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce II Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
Features & Benefits:
- 10" Diameter
- 250mm Diameter
- 1-1/8" x 21 Spline Input Shaft
- Holds Up To 368 ft/lbs of Torque
- Sprung Hub Disc with Organic Material
- Centrifugally Assisted
- Ball Bearing Pressure Plate (where Applicable)
- Light Pedal Effort
Additional Attributes:
- GTIN: 00788442029758
- Alignment Tool Included9: Yes
- Clutch Bolt Pattern4: 20
- Clutch Disc Diameter: 10
- Clutch Disc Diameter: 250
- Counterweight Assist5: YES
- Disc Material3: Organic
- Disc Type Sprung Solid2: Sprung
- Disc Type6: Full face
- Flywheel Step4: 0.018
- Input Shaft Diameter1: 1-1/8
- Input Spline Quantity2: 21
- Made In The USA9: Assembled
- Material4: Cast Iron Pressure Plate / Organic Friction
- Torque Capacity: 368
Extended Information:
- Emissions : 1
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 4 inches
