Product Overview

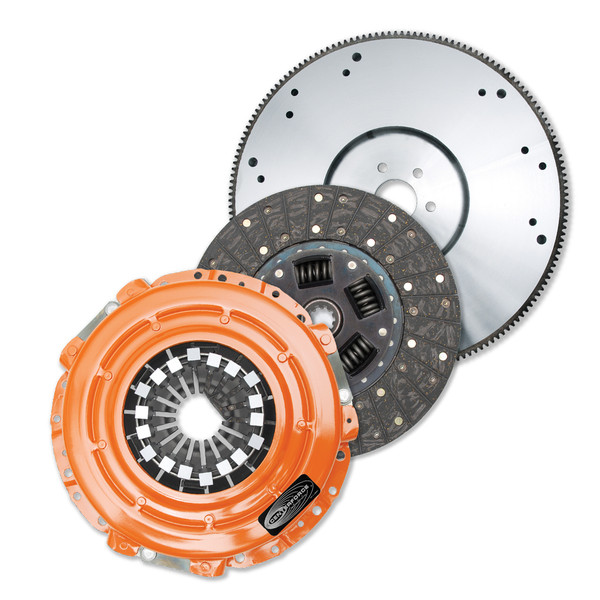

The Centerforce(R) II Clutch Series utilizes a full facing disc with premium friction material and a pressure plate with centrifugal weights (where applicable). Furthermore, static clamp load is increased via our patented machining processes; this combination allows superb holding power and maximum clutch life, making this clutch ideal for selected street/strip, off-road and towing applications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce II Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
Features & Benefits:
- 13" Diameter
- 330.2mm Diameter
- 1-3/8" x 10 Spline Input Shaft
- Holds Up To 800 ft/lbs of Torque
- Sprung Hub Disc with Organic Material
- 152 Tooth R.Gear, 8 Bolt Crank, and 0 oz Counter Balance
- Centrifugally Assisted
Additional Attributes:
- GTIN: 00788442037494
- Alignment Tool Included9: Yes
- Clutch Bolt Pattern6: 23
- Clutch Disc Diameter8: 13
- Clutch Disc Diameter9: 330.2
- Counterweight Assist2: Yes
- Crankshaft Bolt Hole Quantity7: 8
- Disc Material4: Organic
- Disc Quantity0: 1
- Disc Type Sprung Solid: Sprung
- Disc Type5: Full Face
- Flywheel Counter Balance Weight7: 0
- Flywheel Crank Bolt Size1: 12
- Input Shaft Diameter1: 1-3/8
- Input Spline Quantity3: 10
- Made In The USA9: Assembled
- Material2: Cast Iron Pressure Plate / Organic Friction
- Mounting Hardware Included0: Yes
- Pilot Bushing Included7: Yes
- Release Bearing Included5: Yes
- Ring Gear O.D.7: 15.625
- Tooth Quantity: 152
- Torque Capacity: 800
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 18 x 18 x 5.5 inches
