Product Overview

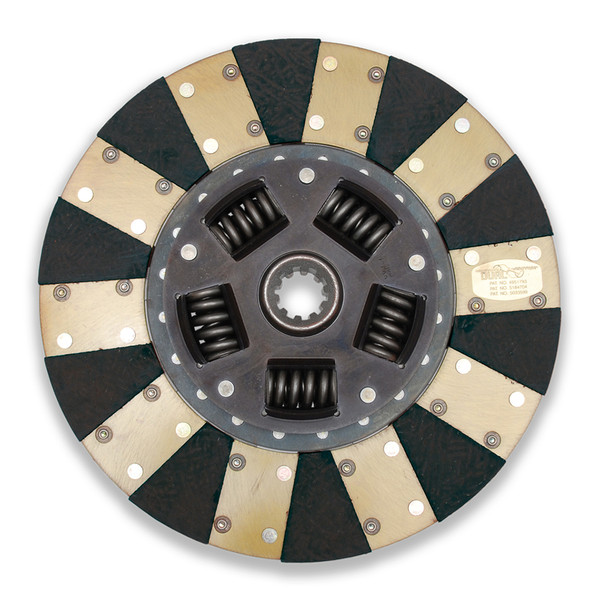

Centerforce brings together high-quality friction materials and patented processes to give you top-of-the-line discs. Centerforce offers discs for the Centerforce I, Centerforce II, Dual Friction, LMC, and DFX series clutches. Each disc is designed to work best with a corresponding Centerforce pressure plate. LMC Series Discs are built with carbon material in puc-style facings on both sides of the disc. These discs are made for Centerforce LMC pressure plates.
Features & Benefits:
- 10.400" Diameter
- 264.2mm Diameter
- 1-1/16" x 10 Spline Input Shaft
- Weighs 4.75 lbs
- Sprung Hub Disc with Organic/Carbon Composite Material
- SFI Spec 1.1 Approved
- Billet Aluminum
- Replaceable Friction Surface
- Ball Bearing Design
Additional Attributes:
- GTIN: 00788442019063
- Clutch Disc Diameter: 10.400
- Clutch Disc Diameter: 264.2
- Disc Material1: Organic/Carbon composite
- Disc Type Sprung Solid2: Sprung
- Disc Type4: Segmented face
- Input Shaft Diameter0: 1-1/16
- Input Spline Quantity1: 10
- Inside Diameter of Friction Surface0: 164.8
- Made In The USA9: Assembled
- Material3: Segmented Organic Friction
- Out of Package Weight: 4.75
- SFI 1.1 Approved: Y
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 2 inches
