Product Overview

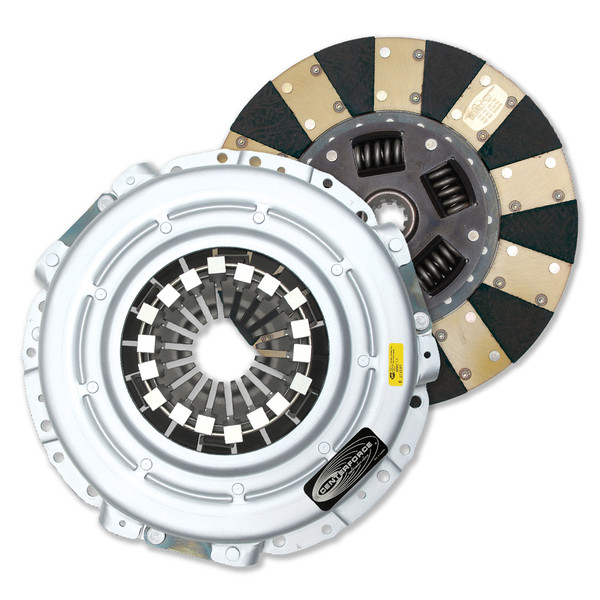

The Centerforce(R) LMC Clutch Series is a specifically designed low inertia performance clutch that dramatically reduces engine rotating mass. These lightweight, SFI approved competition clutches are intended with most road racing and circle track applications in mind. Centerforce machines these special pressure plates from high-strength aircraft-grade billet aluminum and then attach a special heat-treated replaceable friction surface. The Centerforce LMC series friction disc utilizes a dual-segmented carbon composite lining for improved cooling and excellent torque capacity. Light Metal Clutch assemblies from Centerforce uses their patented 'Ball Bearing' actuated diaphragm and centrifugal weight system for maximum grip while maintaining a comfortable and controllable clutch pedal. When used in conjunction with Centerforce's aluminum flywheels, LMC Series brings the term 'Lightweight' to an unparalleled level!
Features & Benefits:
- 11" Diameter
- 279.4mm Diameter
- 1-1/8" x 26 Spline Input Shaft
- Holds Up To 750 ft/lbs of Torque
- Sprung Hub Disc with Organic/Carbon Composite Material
- SFI Spec 1.1 Approved
- Centrifugally Assisted
- Billet Aluminum
Additional Attributes:
- GTIN: 00788442025828
- Alignment Tool Included9: Yes
- Clutch Bolt Pattern4: 18
- Clutch Disc Diameter: 11
- Clutch Disc Diameter: 279.4
- Counterweight Assist5: YES
- Disc Material3: Organic/Carbon composite
- Disc Type Sprung Solid2: Sprung
- Disc Type6: Segmented face
- Flywheel Step Type3: Flat
- Input Shaft Diameter1: 1-1/8
- Input Spline Quantity2: 26
- Made In The USA9: Assembled
- Material4: Aluminum Pressure Plate / Segmented Organic Friction
- Replaceable Friction Surface6: Y
- SFI 1.1 Approved: Y
- Torque Capacity: 750
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14 x 14 x 4 inches
