Product Overview

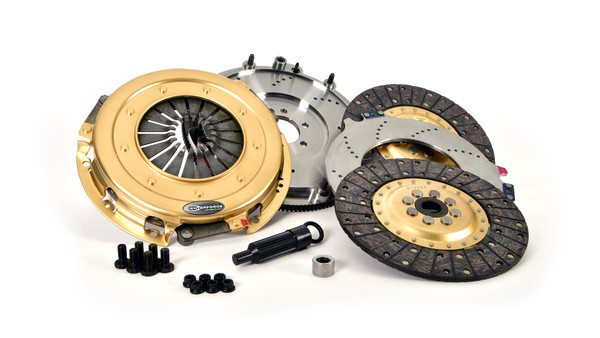

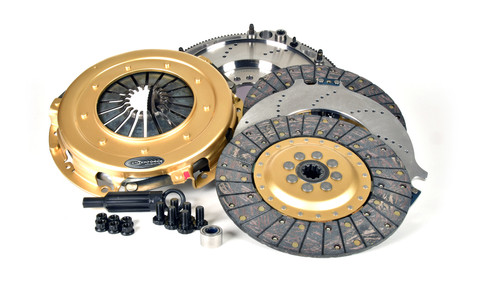

Introducing the NEW Centerforce(R) SST (Solid Street Twin). The SST clutch system has been engineered and developed for vehicles producing 400 to 925 ft/lbs of torque. The SST 10.4" discs utilize solid hubs (possible gear noise) to reduce the rotational weight on the input shaft for quick clean shifts. The discs in this assembly are built using high quality friction materials, for smooth engagement and longevity. The SST features a lightened billet steel flywheel, providing low inertia resulting in quicker RPM and the Centerforce anti-rattle system to reduce floater rattle/noise. No complicated setup or adjustments required, just bolt it in and "Get a Grip". The Centerforce SST includes a billet steel flywheel, 2 discs, floater plate, pressure plate, pilot bearing, alignment tool, and ARP pressure plate and flywheel hardware. The SST clutch system is an economical choice for streetcar enthusiasts looking for a complete high-quality twin disc clutch system. This new clutch assembly can be used for everyday use and spirited days on the track.
Features & Benefits:
- 10.4" Diameter
- 264.2mm Diameter
- 1-1/8" x 26 Spline Input Shaft
- Holds Up To 925 ft/lbs of Torque
- Weighs 44.30 lbs
- Solid Hub Disc with Organic Material
- 153 Tooth R.Gear, 6 Bolt Crank, and 0 oz Counter Balance
- Simple Install
Additional Attributes:
- GTIN: 00788442036985
- Alignment Tool Included9: Yes
- Clutch Disc Diameter8: 10.4
- Clutch Disc Diameter9: 264.2
- Counterweight Assist2: No
- Crankshaft Bolt Hole Quantity7: 6
- Disc Material4: Organic
- Disc Quantity0: 2
- Disc Type Sprung Solid: Solid
- Disc Type5: Full Face
- Flywheel Counter Balance Weight7: 0
- Flywheel Crank Bolt Size1: 7/16 in x 20 x 0.875
- Flywheel Crank Flange Register8: 2.485
- Input Shaft Diameter1: 1-1/8
- Input Spline Quantity3: 26
- Installed Height2: 2.870
- Made In The USA9: Assembled
- Material2: Billet Steel Flywheel / Nodular Iron Pressure Plate / Organic Friction
- Mounting Hardware Included0: Yes
- Out of Package Weight: 44.30
- Pilot Bushing Included7: Yes
- Pilot Bushing Material8: Bearing
- Release Bearing Included5: No
- Ring Gear O.D.7: 12.845
- Tooth Quantity: 153
- Torque Capacity: 925
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 18 x 18 x 5.5 inches
