Product Overview

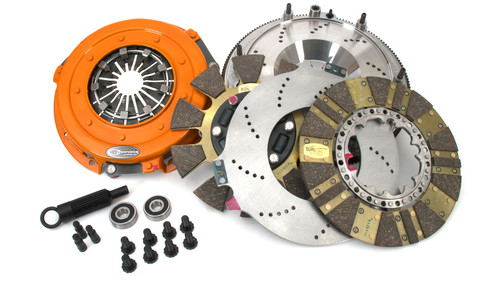

The Centerforce(R) TRIAD XDS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1200 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. TRIAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
Features & Benefits:
- 8.75" Diameter
- 222mm Diameter
- 1-1/8" x 26 Spline Input Shaft
- Holds Up To 1100 ft/lbs of Torque
- 168 Tooth R.Gear, 8 Bolt Crank, and
- 8.75" Dia for Track Use
- Solid Hub for Light Quick Shifts.
- Patented Multi-Disc Design
Additional Attributes:
- GTIN: 00788442034783
- Alignment Tool Included9: Yes
- Clutch Disc Diameter8: 8.75
- Clutch Disc Diameter9: 222
- Counterweight Assist2: No
- Crankshaft Bolt Hole Quantity7: 8
- Disc Type Sprung Solid: Solid
- Flywheel Crank Bolt Size1: MM11 x 1.50 x 23
- Input Shaft Diameter1: 1-1/8
- Input Spline Quantity3: 26
- Made In The USA9: Assembled
- Material2: Cast Iron Pressure Plate / Full Face Metalic Friction
- Mounting Hardware Included0: Yes
- Pilot Bushing Included7: Yes
- Replaceable Friction Surface4: N
- Ring Gear O.D.7: 14.105
- Tooth Quantity: 168
- Torque Capacity: 1100
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 18 x 18 x 5.5 inches
