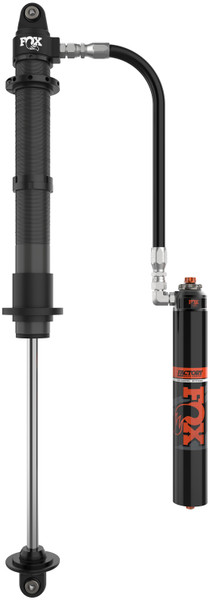

FACTORY RACE 2.5 X 10 COIL-OVER INTERNAL BYPASS ROTATING REMOTE SHOCK - DSC ADJUSTER - 981-25-604-3

FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.

Features & Benefits:

• NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
• 17-4 H900 hard chrome plated stainless steel shaft
• Owner serviceable and rebuildable
• JM92 MIL-SPEC oil developed specifically for off-road racing
• Black Anodized CNC Machined Aluminum Components

Associated Comments:

• Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can. Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed. Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.

Additional Attributes:

• GTIN: 00788000427897
• Adjuster Type: DSC - Dual Speed Compression
• Body Diameter (in): 2.5
• Body Finish: FOX Grey Cerakote
• Body Material: Steel
• Bottom Mount: Eyelet
• Compressed Length (in): 18.50
• Extended Length (in): 28.55
• Eyelet Length (in): 1.95
• Fox Catalog: OFFROAD
• Hose: -10 x 18.00
• Label Name: 2.5 FRS, CO, IBP, RR/R, DSC, 10"
• Mounting: 1/2 x 1-1/2
• Reservoir Dimensions: 2.55 x 10.00
• Reservoir Type: Rotating Remote
• Series: Factory Race
• Shaft Size (in): 7/8
• Top Mount: Eyelet
• Travel (in): 10.05
• Type: Coil-Over Internal Bypass
• Valving: 807-24-008

Extended Information:

• Emissions : 1
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 37.2500 x 6.5000 x 4.5000 inches
