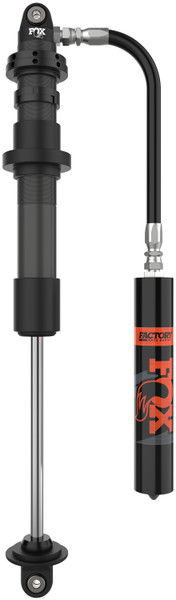

Product Overview
FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
Features & Benefits:
- NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
- 17-4 H900 hard chrome plated stainless steel shaft
- Owner serviceable and rebuildable
- JM92 MIL-SPEC oil developed specifically for off-road racing
- Black Anodized CNC Machined Aluminum Components
Associated Comments:
- Uncompromised performance through FOX’s patented internal bypass technology delivers the feel of near-endless suspension travel. Exclusive internal bypass technology allows oil to flow around the piston at some points of the stroke – while creating humongous pressure at other points – supporting the vehicle like no other product can. Floating through terrain is accomplished with FOX’s ride zone – combining a race-developed shock piston, internal bypass and Dual Speed Compression adjustment – allowing fine tuning for weight, terrain and speed. Dominate any terrain with the brute strength of 3- and 2.5-inch aluminum bodies, cactus cooler reservoirs and 7/8” shafts with redundant seals, all proven in the harshest of environments under the toughest of conditions.
Additional Attributes:
- GTIN: 00788000425541
- Body Diameter (in): 3
- Body Finish: FOX Grey Cerakote
- Body Material: Steel
- Bottom Mount: Eyelet
- Compressed Length (in): 24.50
- Extended Length (in): 38.50
- Eyelet Length (in): 2.50
- Fox Catalog: OFFROAD
- Hose: -12 x 18.00
- Label Name: 3.0 FRS, CO, R/R, 14"
- Mounting: 5/8 x 1-1/2
- Reservoir Dimensions: 3.00 x 14.00
- Reservoir Type: Remote
- Series: Factory Race
- Shaft Size (in): 1
- Top Mount: Eyelet
- Travel (in): 14.00
- Type: Coil-Over
- Valving: 807-24-601
Extended Information:
- Emissions : 1
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 42.0000 x 11.0000 x 11.0000 inches
605-00-035_REV_B
