Product Overview

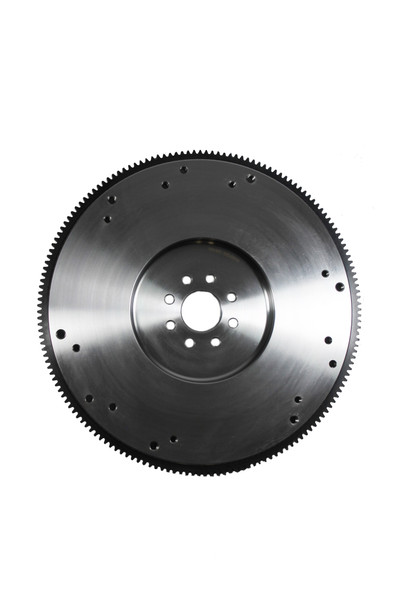

McLeod steel flywheels are perfect for street applications where easy stop light acceleration is desired. Steel flywheels come in various weights and dimensions. For race applications, a heavier steel unit is ideal for helping launch a heavy car with a smaller engine with less torque and horsepower. They are CNC machined from billet alloy steel and have 1045 hardened steel ring gears.
Features & Benefits:
- • Billet Steel. • 1045 Steel Hardened Ring Gear. • SFI rated.
Additional Attributes:
- GTIN: 00887753012128
- Crankshaft to Flywheel Bolt Quantity: 8-bolt
- Disc Diameter (in.): 9-11/16 in.
- Engine Balance: Internal
- Engine: 2010-2014 Ford Mustang GT500 5.4L/5.8L 8 bolt crank
- Make: Ford
- Marine Use: No
- Material: Billet steel
- Note 2: CENTERBORE/CRANK BOSS: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft boss fit may have variations from slip-fit to slight interference. Interference at the crankshaft “boss” can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
- Note: This flywheel is made specifically for the McLeod RST/RXT and will not fit a conventional style clutch. Please call McLeod Tech for more details at 714-630-2764
- Pressure Plate Style: Diaphragm
- Quantity: Sold individually.
- Replaceable Friction Surface: No
- Ring Gear Tooth Quantity: 164-tooth
- SFI 1.1 Approved: Yes
- Weight: 22.000 lbs.
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14.5 x 14.5 x 2 inches
