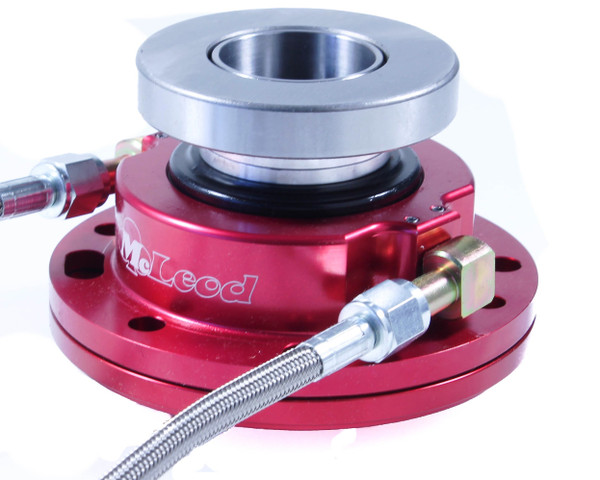

Hydraulic TOB Bolt On Corvette 1989-96 ZF 6 Speed. Fixed Position Piston. - 1345-1

The 1300 series bolt on bearing is intended to replace your OEM bearing retainer when your "A" measurement is less than 3". These bearings are made of the finest hard anodized billet aluminum, along with quality elbow swivel fittings and high pressure stainless steel braided lines. These high quality components make the Mcleod bolt on hydraulic throw out bearing extremely durable, and the best in the market today! These assemblies may be used to eliminate the need to fabricate complex clutch linkage when swapping transmissions.

Additional Attributes:

• GTIN:
• "A" Dimension: 2.31" to 2.50"
• NOTE 2:: Not Available for delivery until Quarter (1) 2023.
• NOTE:: This is intended for applications where the clutch is a "Push Style" Clutch. NOT the OEM "Pull Style" clutch.
• Spline: 1 1/8" x 26
• Trans Type: ZF 6 Speed Corvette
• Transmission Bearing Register: 4.680"

Extended Information:

• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.25 x 5.5 x 3.25 inches
