Product Overview

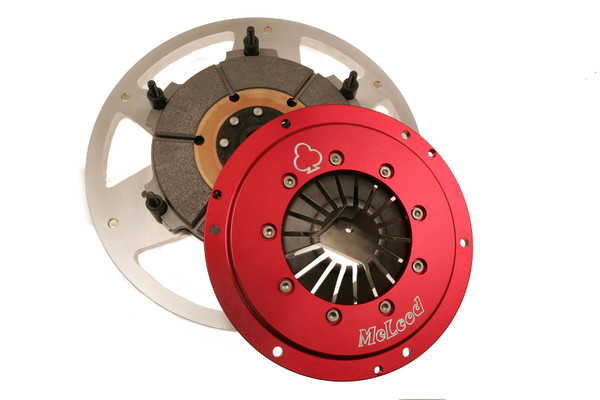

Mag Force - These Clutches Are The Perfect Choice For Racers Looking For A Lightweight, High Torque Capacity Unit. They Are Designed To Be Used For Oval Track, Road Racing And Dry Lakes Applications. These Units Are Offered In Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations To Meet The Harshest Needs In The Industry. These Units Rely On A Pin Drive Actuation System Where The Floater Plate Slides On 6 Evenly Spaced Pins For Quick Release In A Racing Application. Our Mag Force Units Also Offer Bolt On External Balance Weights For Most Applications.
Features & Benefits:
- • Ceramic Discs. • Pin or Strap Drive. • Oval Track, Road Racing and Dry Lakes usage. • Single Disc (500Ft Tq) • Double Disc (900 Ft Tq) • Triple Disc (1500 Ft Tq
Additional Attributes:
- GTIN: 00887753675071
- Alignment Tool Included: Yes
- Clutch Disc Quantity: 3
- Clutch Usage: Performance
- Crankshaft to Flywheel Bolt Quantity: 6-bolt
- Disc Diameter (in.): 8.000
- Disc Material: Sintered Iron
- Disc Style: Full face
- Engine Balance: Internal
- Flywheel Included: Yes
- Flywheel Material: Billet aluminum
- Hardware Included: Yes
- Hub Style: Solid
- Input Shaft Diameter: 1.125
- Input Spline Quantity: 26
- Make: Ford
- Note: Aftermarket Transmission
- Pilot Bushing Included: No
- Pressure Plate Style: Diaphragm
- Quantity: Sold as a kit.
- Ring Gear Tooth Quantity: 176-tooth
- Throwout Bearing Included: No
Extended Information:
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 16 x 17 x 5.5 inches
