Product Overview

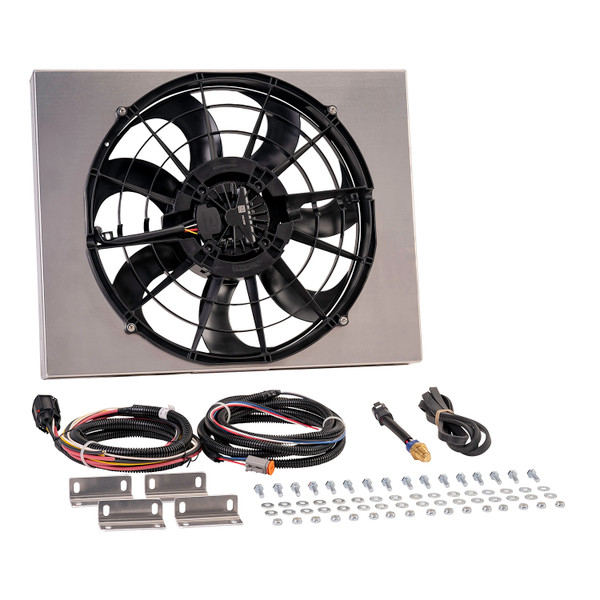

Get complete control of your engine temperature! Derale Performance has combined their high-performing shrouded Powerpacks with the ultimate fan controller. Using a brushless electric fan incorporated into an engineered shroud, this Powerpack can conquer even the most difficult cooling conditions. This unit features a Aluminum shroud measuring 22 1/4" wide by 17 5/8" top to bottom and is only 3" in overall depth to offer a precision fit. This 17" brushless electric fan is one of the best in our line-up offering up to 2800 CFM and is specifically designed to thrive on thick, tight fin radiator cores. Now add the PWM Fan Controller with built-in soft start technology. The controller utilizes Pulse Width Modulation to constantly adjust electric fan speeds from 0-100%, to maintain 185°F temperature. No more reacting to the engine temps, you can control it! This allows the 17” brushless electric fan to operate at the percentage needed, instead of 100% all the time, therefore increasing component life and eliminating amperage spikes.
Features & Benefits:
- Powerpack - Brushless Single 17" RAD Fan/Alum Shroud Kit w/ PWM Controller
Associated Comments:
- Designed for primary cooling
- Constantly adjusts fan speed to maintain 185°F
- Digital solid state controller
- Includes automatic resetting circuit breaker and A/C override circuit built-in
- Raw aluminum shroud construction can be polished, painted or anodized
- High Output Brushless motor
- 2800 CFM
- Ultra-quiet patented skewed blade design
- Puller (engine side) applications only
- Kit includes adjustable mounting brackets and complete mounting hardware
- PWM Controller Offers Numerous Benefits
- Pulse Width Modulation controls fan(s) speed from 0-100%
Additional Attributes:
- GTIN: 00083277679506
- Amp draw: 35
- CFM: 2800
- Color: Gray/Black
- Height: 17-5/8
- Overall depth: 3
- Shroud depth: 1-1/8
- Width: 22-1/4
Extended Information:
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26.5 x 23.38 x 5.5 inches
67922
