RXT 1200: Metric Ring: Ford Mustang 2001.5-10 Ford 4.6L: 1-1/16 x 10 - 6932-03HD

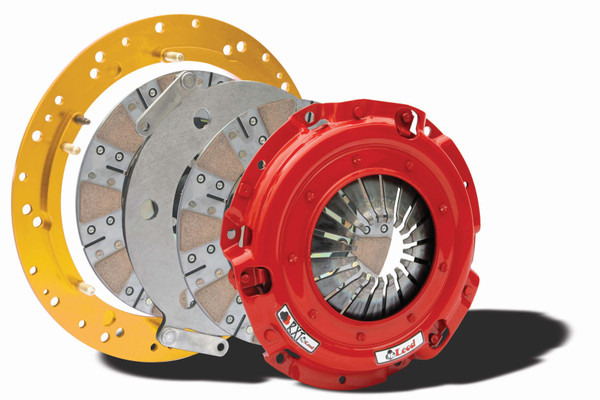

McLeod RXT 1200 – Rated up to 1200 HP, this twin disc clutch is Intended for the high horsepower street/strip fan. This clutch can handle serious horsepower and still remain street-able. Ceramic lined clutch discs will provide smooth engagement with a moderate pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch is perfect for the person that wants the best of both worlds. This clutch is perfect for the person that wants the best of both worlds. You want to drive to the track then rip off a bunch of ¼ mile passes then drive back home, the RXT 1200 is what you’ll need! This series of clutches comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a patented approved adapter ring to bolt to your supplied flywheel. Complete unit with dedicated flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.

Features & Benefits:

• • Metallic Facings for Increased Holding Power. • Higher Clamp Load Pressure Plate. • Excellent Release Qualities. • Bolts to Most Flywheels. • Available with Aluminum or Steel Flywheel.

Associated Comments:

• NOTE: 1999 to 2010 Mustang 4.6L/5.4L factory flywheels may not work due to the large crank relief in the center of the flywheel. Crank relief must be 6.250" or smaller for correct disc to flywheel contact.

Additional Attributes:

• GTIN: 00887753019134
• Alignment Tool Included: Yes
• Clutch Disc Quantity: 2
• Clutch Patterns: 11" GM LS-X With Dowel Pin; 11" Ford Modular with Dowel Pins
• Clutch Usage: Performance
• Disc Diameter (in.): 9.687
• Disc Material: Ceramic
• Disc Style: Segmented
• Flywheel Fitment: For use with Ford Modular/GM LS-X
• Flywheel Included: No
• Hardware Included: Yes
• Horsepower Rating: 1200
• Hub Style: Solid
• Input Shaft Diameter: 1.063
• Input Spline Quantity: 10
• Make: Ford
• Note: Crank relief must be 6.250" or smaller for correct disc to flywheel contact. Will NOT fit Ford w/9 Bolt Pattern.
• Pilot Bushing Included: No
• Pressure Plate Style: Diaphragm
• Quantity: Sold as a kit.
• Throwout Bearing Included: No

Extended Information:

• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 17 x 5.5 inches
